2x 10cm Speaker Enclosure mount pods For Mercedes-Benz W124 Rear Door Ashtray

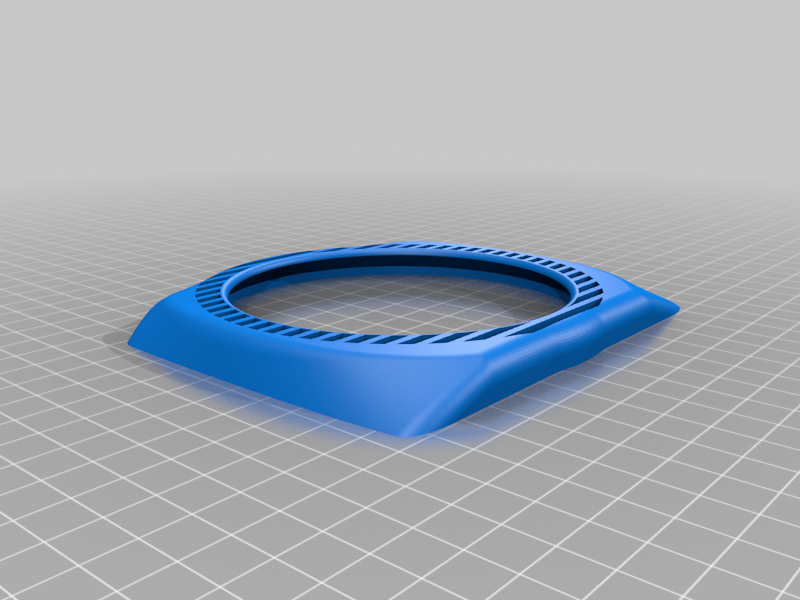

Depending on the speakers you chose (we used the Kenwood KFC-S1066), you might have to remove the two rings on the bottom of the second print.
We were able to keep them.

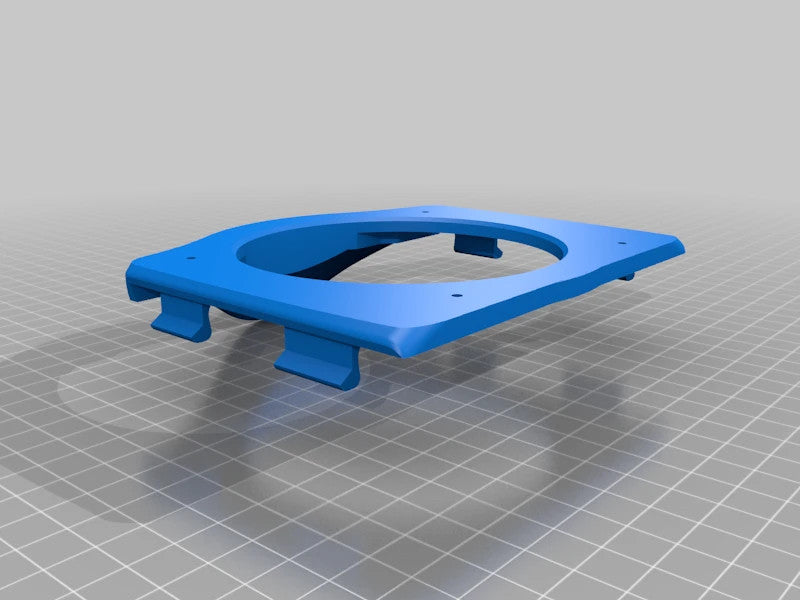

Place your speaker inbetween the two prints and after making the speaker straight and horizontal, screw the two halves together from the back using the four screw holes provided in the prints, thus clamping the speaker inbetween.

Installation:
Firstly, remove the original door card ashtrays, by pressing them DOWN while they are open and then pulling them open further.
Then, using a screwdriver, carefully remove the black housing that the ash tray fit into from the door card.
you should now have a hole that you can see inside of the door through.
Route your cables (you might have to remove the door cards for this) and then wire up the speaker.
Once wired up, tilt it slightly about 15° so the top of the print (that has the round angled part on the back side) is closer to the door than the bottom.

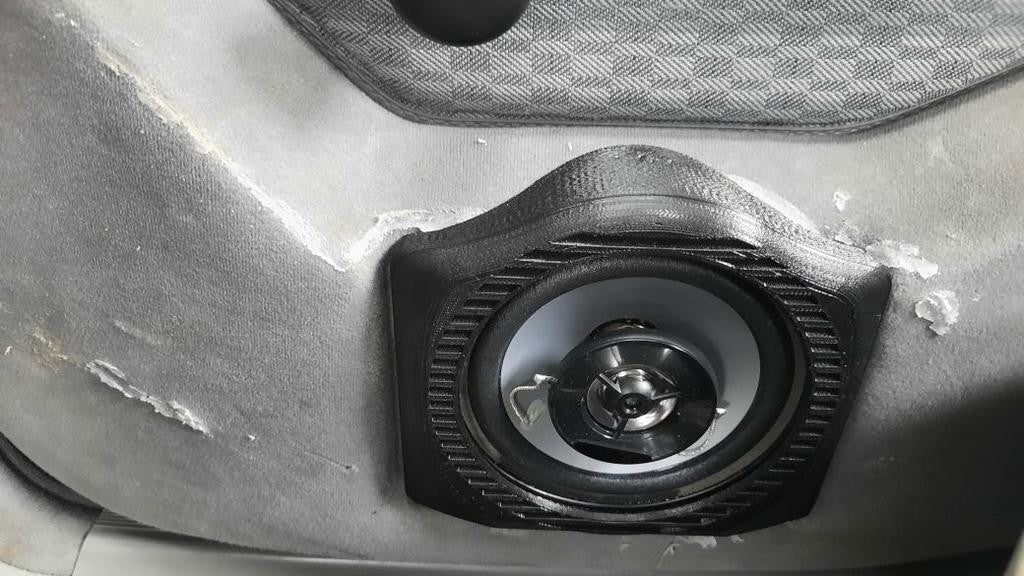

Maneuver the speakers magnet behind the edge of the hole, and then from the top to the bottom, snap the assembly into place with the four clips.
There you go!

Have fun and enjoy the new soundscape in your W124!

This item will be printed in BLACK unless otherwise requested

PROUDLY MADE IN THE USA!

How is it made?

This item is made from 100% solid PETG which is FDM 3D-Printed to order on commercial Machines! These parts are guaranteed to be acceptable strength for the application.
